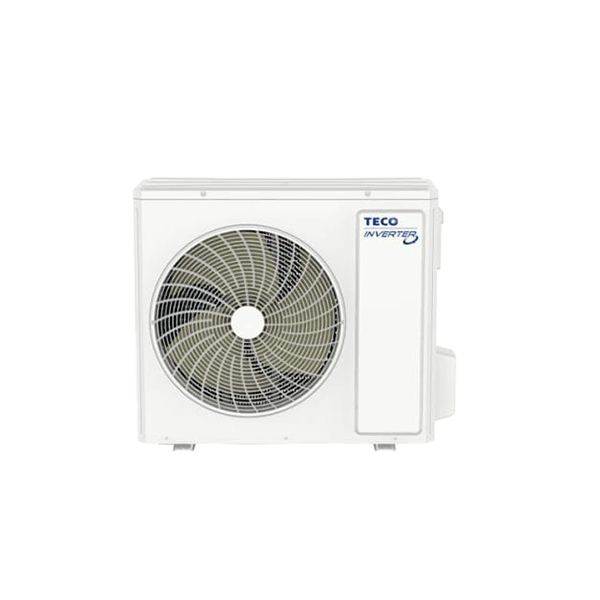

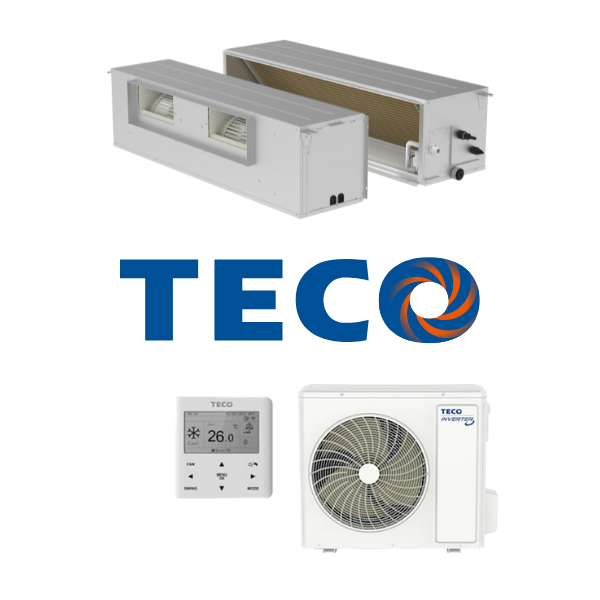

TECO TDS-TSO125HVSWDG 12.5kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller
The TECO 12.5kW Ducted System is engineered to deliver powerful and efficient climate control, making it an ideal choice for small to medium-sized homes and light commercial spaces. Its innovative splittable indoor unit offers flexible installation and simplified maintenance, adapting effortlessly to even the most complex ceiling configurations. With a maximum ESP setting of 200Pa , the system ensures strong and consistent airflow, simultaneously optimising comfort across multiple zones. The outdoor condenser coil is enhanced with a Blackfin coating that provides superior corrosion resistance, while the indoor evaporator coil benefits from a Goldfin coating that prevents coil degradation and bolsters long-term durability. An integrated drain pump further streamlines installation by efficiently managing condensate, regardless of the installation environment. Additionally, in-built WiFi enables remote control and real-time monitoring, giving users convenient access to system performance and settings.
Features:

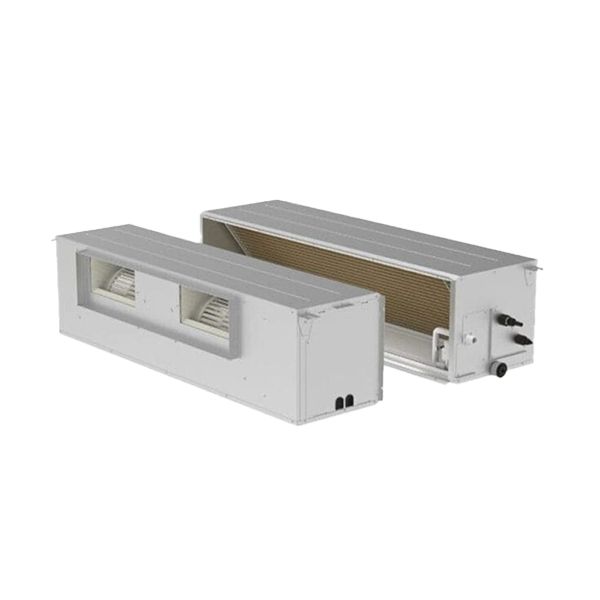

- Splittable Indoor Unit
- Dynamic Temperature Control
- Plasmacluster Ion Sterilisation
- In-Built WiFi
- In-Built Drain Pump
- Blackfin Coating on Outdoor Unit
- Goldfin Coating on Indoor Unit
- High External Static Pressure (ESP) Control
- X-Fan Function to remove excessive moisture accumulation on shut down
- Fresh Air Intake Control
- Wide Voltage Range Operation
- BMS Control Capability
- Insect-Proof Outdoor Unit Electric Box – Sealed to ≤3mm.
- DRED Enabled
- Refrigerant Radiative Technology
| SKU | TDS-TSO125HVSWDG-INSTALL |
| Brand | TECO |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| Unit Size | 11 - 16.9kW |
| Series | Mid Static |
| Type | Ducted |
| Cooling Capacity (kW) | 12.5 |
| Outlets | 8 |
| Zones | 2 |
| Indoor Weight | 209 |
| Outdoor Weight | 67 |
| Refrigerant | R32 |
| Heating Capacity (kW) | 14 |
| Indoor Size | 360x1350x720 |
| Outdoor Size | 820x940x370 |
| Control System | Standard |
| Shipping Weight | 124.0000kg |
| Shipping Width | 22.900m |
| Shipping Height | 11.800m |
| Shipping Length | 10.900m |
New Wave Air pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Prestons NSW office. All other areas to be quoted.
Wall Split Air Conditioner Installation
- Single story (lowset) home with back to back installation, maximum of 3m pipe run.
- Outdoor unit mounted on the ground.
Ducted Air Conditioner Installation
- Pricing includes an existing single story (lowset) home, adequate ceiling access.
- Outdoor unit mounted on the ground.
- Power run up to 15m.
